Lightweight and high spec! Sea bass dedicated
machine that shines in the field |
| EXSENCE CI4 + |
The long-awaited CI4 + model is now available
in the Exsense series! Lightweight and tough body colored
in dark gunmetal color, full of features that are the same
as the upper model. X Protect, the first in the CI4 + series,
is a powerful ally for deep wading games on tidal flats
and rivers. Rapid fire drag that can develop the interaction
with the big sea bass in an advantageous manner.
The 4 lineups from C3000M to 4000MXG are exactly
for sea bass. It is an item that embodies the wishes
of the angler. |
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
| Lineup |
 |
 |

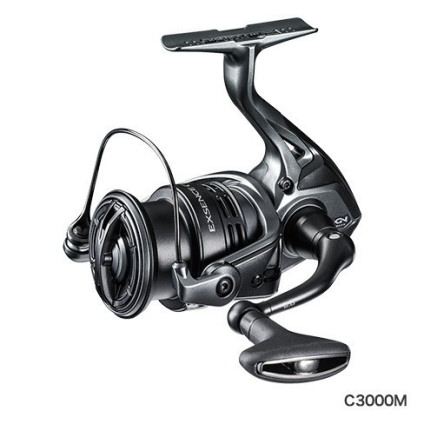

C3000M
|
3000MHG
|
|
|
|
| Feature |
 |
 |
 |
 |
X protect
In addition to
water-repellent
treatment, Shimano's
tough waterproof
structure uses
a labyrinth structure
that suppresses
the ingress of water.
Solves the difficult
problem of improving
the waterproof effect
without increasing the
rotational resistance.
In addition, since
it uses a non-contact
type seal, it does not
wear and the
waterproof
effect lasts for
a long time. Due to
its light rotation,
it can be used in the
line roller section,
and the durability of
the line roller bearing
in addition
to the body section
is greatly improved. |
Magnum Light Rotor
Magnum light rotor
that realizes a different
dimension of rotation
lightness. Changed
the symmetrical
structure to an
asymmetric structure.
The "bale return
mechanism"that was
assembled on the
line roller side is
attached and
transplanted
to the cam side.
We havesucceeded
in reducing the inertia
of the line roller
by up to about 14% by
reducing the weight
of the line roller, making
the bale titanium,
and optimally arranging
the rotor wall thickness.
Rotor rigidity on the
line roller side has
been increased
by up to 30% compared
to conventional products!
* Numbers in the text are
calculated using the 16
Vanquish # 2500 series. |
G free body
Succeeded in bringing
the center of gravity
of the entire reel
closer to hand
by arranging sliding
functional parts
for moving the spool
back and forth
on the upper part
of the reel body.
This improves
the sense of unity
with the rod, reduces
fatigue caused
by casting, and
improves rod operability. |
One piece bail
Equipped with
a one-piece
bail manufactured
by one-piece molding
that is lightweight and
has high strength and
is completely seamless.
It looks beautiful and
is trouble-free. |
|
|
|
|
 |
|
|
|
Rapid fire drag
The drag force
changes greatly
with the rotation
speed of the
drag knob, and
it is a very effective
function in situations
where you want
to adjust the drag
instantly, such
as when you want
to stop a fish around
the structure
or when you are
suddenly thrust
at your feet. |
|
| |
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity
Nylon Line (lb-m)
Fluorocarbon Line(lb-m)
PE Line(PE-m) |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| BB |
roller |
| C3000M |
5.0 |
73 |
195 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE0.8-300m PE1-220m
PE1.2-150m |
9/1 |
37,500 |
JPY29,700 |
03881 |
 |
| C3000MHG |
6.0 |
88 |
195 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE0.8-300m PE1-220m
PE1.2-150m |
9/1 |
37,500 |
JPY29,700 |
03882 |
|
| 3000MHG |
5.8 |
85 |
205 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE0.8-300m PE1-220m
PE1.2-150m |
9/1 |
38,500 |
JPY30,492 |
03883 |
|
| 4000MXG |
6.2 |
99 |
245 |
11.0 |
10lb-160m 12lb-120m
16lb-90m
12lb-110m 16lb-90m
20lb-65m
PE1.2-250m PE1.5-200m
PE2-150m |
9/1 |
39,500 |
JPY31,284 |
03884 |
|
* XG = extra high gear specification, HG = high gear specification,
M = medium deep spool specification, C = compact body.
* There is no stopper switching mechanism. |
|
|
|
